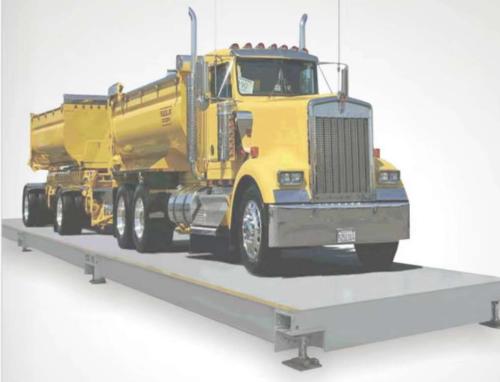

Product Introduction

Load capacity: 30T-150T(Customizable specifications）

Specification：

Two truck scales of 16x3m specification, or one each of 16x3m and 18x3m, can fit into a 40HQ container. If it is two 18*3m truck scales, they need to be purchased (4 sections).

rolled steel：

1、panel data 12mm
2、U(girder)8mm
3、baffle plate 20mm
4、pressureplate30mm
5、totalweight:3*16m:23T;3*18m:24.5T

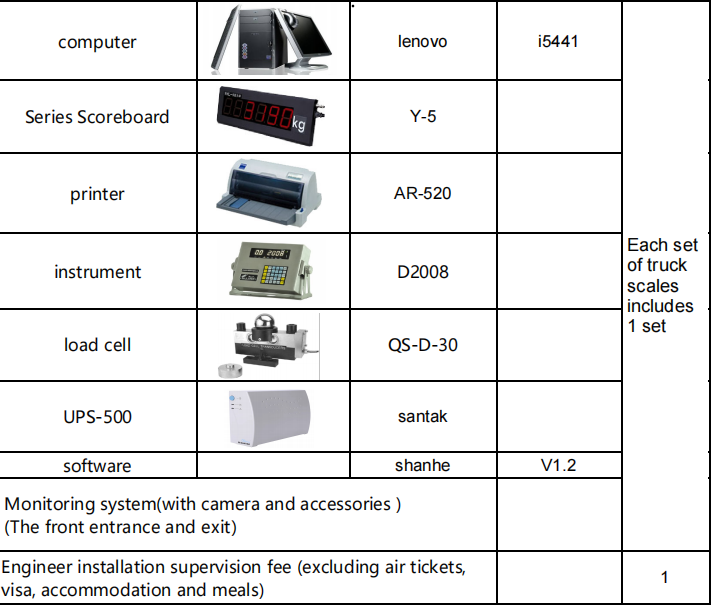

Electronic loadometer configuration:
1.  the digital high precision weighing sensor QS-d-30 * 8sets.
2.  digital equalizer (military standard resistor) * 1 sets.
3.  the scale body limiting device * 1 sets.
4.  8 sets of high precision bolt *.
5.  digital display instrument, (D2008) * 1 sets.
6.  QS-D-30 connection x 8sets.
7.  the standard weighing platform (3 *18m) or(3*16m)
8.  computer (including weighing software) * 1 sets.
9.  Dascom AR-520 Printer (including 5 boxes of special printing paper) × 1 set.
