Product introduction
Product Overview

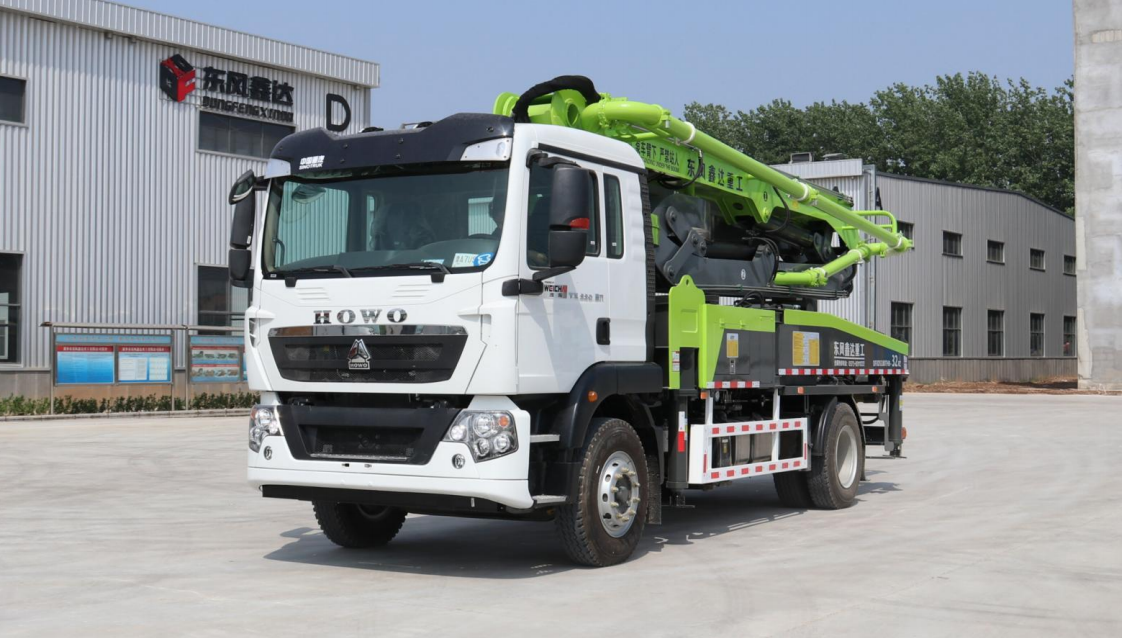

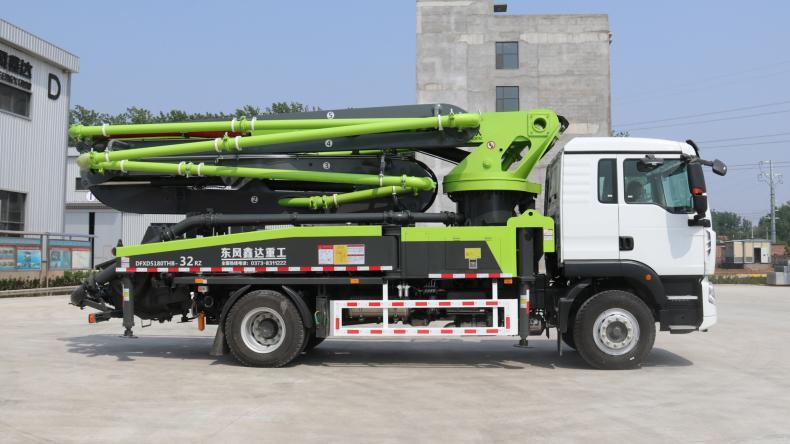

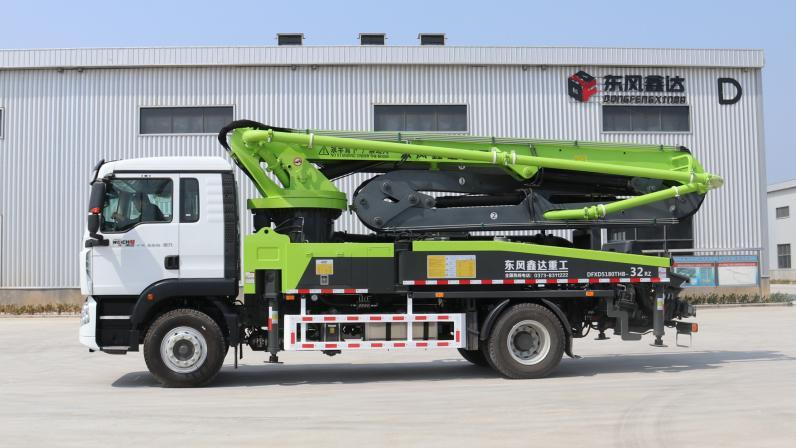

The 32 meter concrete pump truck is a lightweight, highly mobile, and efficient concrete conveying equipment designed for small and medium-sized construction projects, urban and rural construction, municipal supporting facilities, factory buildings, and low rise residential construction. The whole vehicle adopts a mature and reliable two axle chassis and a multi section folding arm structure, which combines the advantages of moderate operating range, strong site adaptability, convenient transfer, and high cost-effectiveness. It is the mainstream pumping equipment for small and medium-sized construction sites.

Core technical parameters (typical configuration)

Maximum fabric height: approximately 32mMaximum horizontal conveying distance: about 28mMaximum theoretical conveying capacity: 80-100m 3/hConcrete outlet pressure: 6-8 MPaArm frame form: Multi section RZ/Z folding arm frame, 360 ° full rotationLeg form: H-shaped/X-shaped telescopic leg, providing stable supportChassis type: Two axle dedicated chassis, National VI emission standardVehicle length: ≤ 9.2m, good passabilityApplicable aggregate particle size: ≤ 40mmControl mode: wired+wireless remote control dual operation.

Structure and configuration characteristics

1. Arm systemMade of high-strength alloy steel, lightweight design, good rigidity, and low vibration; Multi arm folding structure, flexible deployment, wide coverage range, can meet the pouring needs of different angles and heights.

2. Pumping systemEquipped with a large displacement main oil pump and S-pipe valve reversing structure, the reversing is smooth, the wear is small, and the failure rate is low; The pumping flow rate can be infinitely adjusted to adapt to different construction rhythms and concrete working conditions.

3. Hydraulic and electrical control systemOpen hydraulic circuit, excellent heat dissipation performance, stable long-term continuous operation; Integrated intelligent electronic control system, equipped with functions such as one click start stop, fault self diagnosis, safety interlock protection, etc., with simple and intuitive operation.

4. Chassis and support legsDedicated heavy-duty chassis, powerful and fuel-efficient; The leg deployment span is reasonable, the support area is large, the overall stability of the machine operation is strong, and it can adapt to various complex sites.

Advantages

1:The industry leader in the rural pump truck market, has been developing the first single bridge pump truck in China since 2009. Now optimized and upgraded, the 32 meter small pump truck designed specifically for rural roads has become the most practical model in the rural pump truck market.

2:The vehicle design is reasonable and efficient, and the pumping system adopts large-diameter conveying cylinders, which are powerful and efficient. The maximum theoretical pumping volume can reach 100m 3/h.

3:Pumping work, strong and efficient, with a total length of 9 meters, a total height of 3.46 meters, and a wheelbase of 4.5 meters, all of which are the smallest in the same meter range among peers. The transition is flexible, making it easier to cope with small and complex construction sites in rural areas.

4:Dual mode of sky pump and ground pump, with the tail connected to the car mounted pump in seconds. The horizontal distance between the pump pipes can reach 300 meters, making it versatile and economically efficient.

5:Safe, reliable, stable, and efficient, adopting active shock absorption technology for the boom, the vibration amplitude of the boom under all working conditions is within ± 0.2 meters, and the through axis structure boom connection design reduces the impact on key parts of the boom by more than 30%.

6:Energy saving and emission reducing, economically reliable, automatic matching of pumping displacement and engine power, adaptive adjustment during operation, reducing fuel consumption by 15%. Wireless remote control one click start system, easy to operate, economical and reliable.

7:Intelligent digital, real-time control, interconnection between electronic control system and cloud platform, free control of device status, self diagnosis, etc., can view device location, driving path, working hours and other functions in real time at the terminal.

8:Professional focus, wholehearted service, free one-on-one on-site training service, free on-site inspection service, 1-hour rapid response, 24-hour after-sales service, efficient service, worry free throughout the process.
