Product Description

Core configuration and power

1. Engine: WD615.47 inline six cylinder water-cooled turbocharged intercooled diesel engine, displacement 9.726L, 371 horsepower (273kW), Euro II diesel standard, strong torque, suitable for heavy-duty climbing.

2. Transmission: Heavy Duty Truck HW19710, etc. with 10 front and 2 reverse manual gears, equipped with PTO power take-off, driving the mixing tank.

3. Drive and axle: 6 × 4 (rear dual drive), steel plate spring integral axle (HC16 series heavy-duty rear axle, with wheel/axle differential lock), strong load-bearing capacity and cheap maintenance; The front axle is mostly in the 9-ton class.

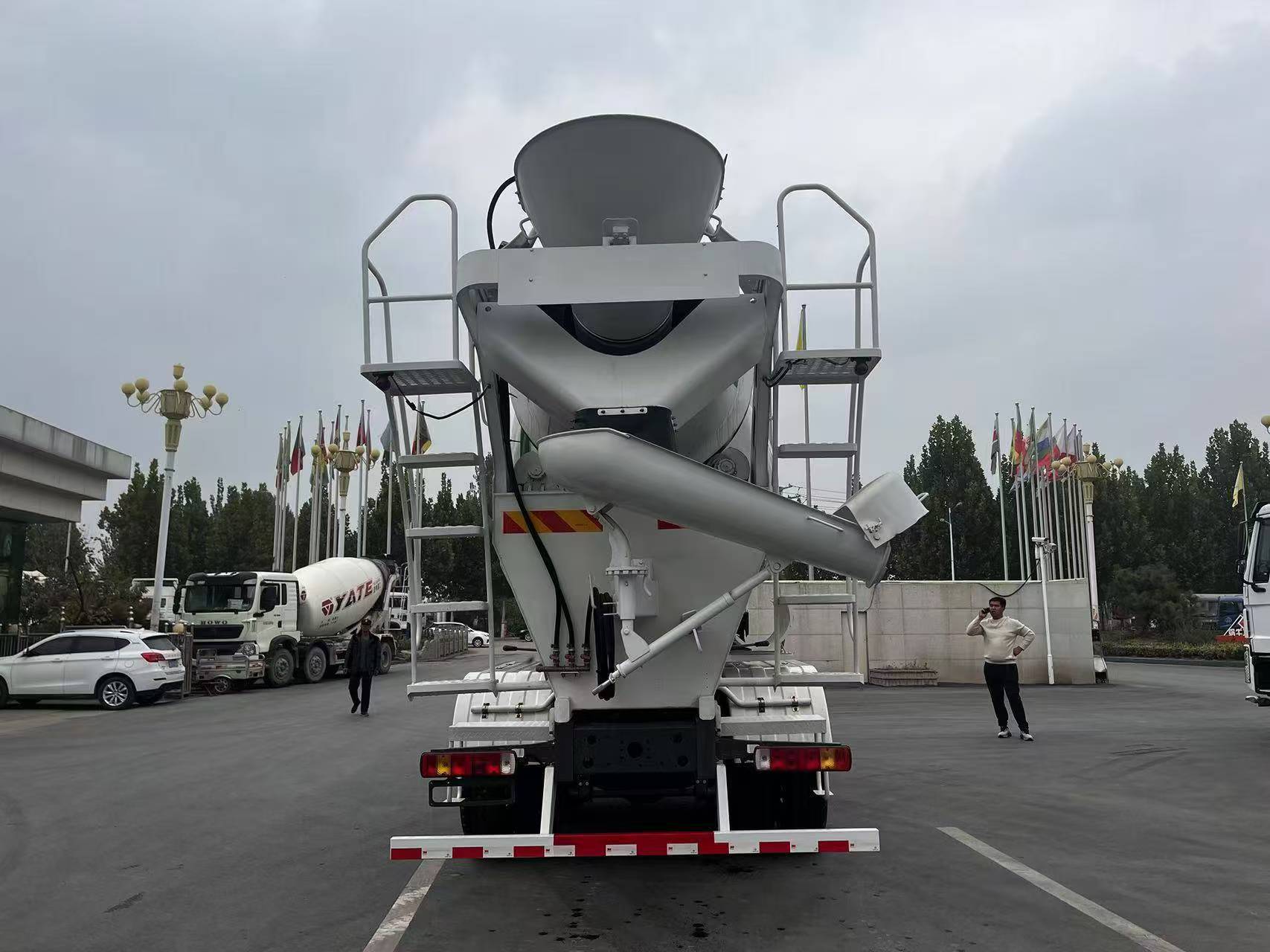

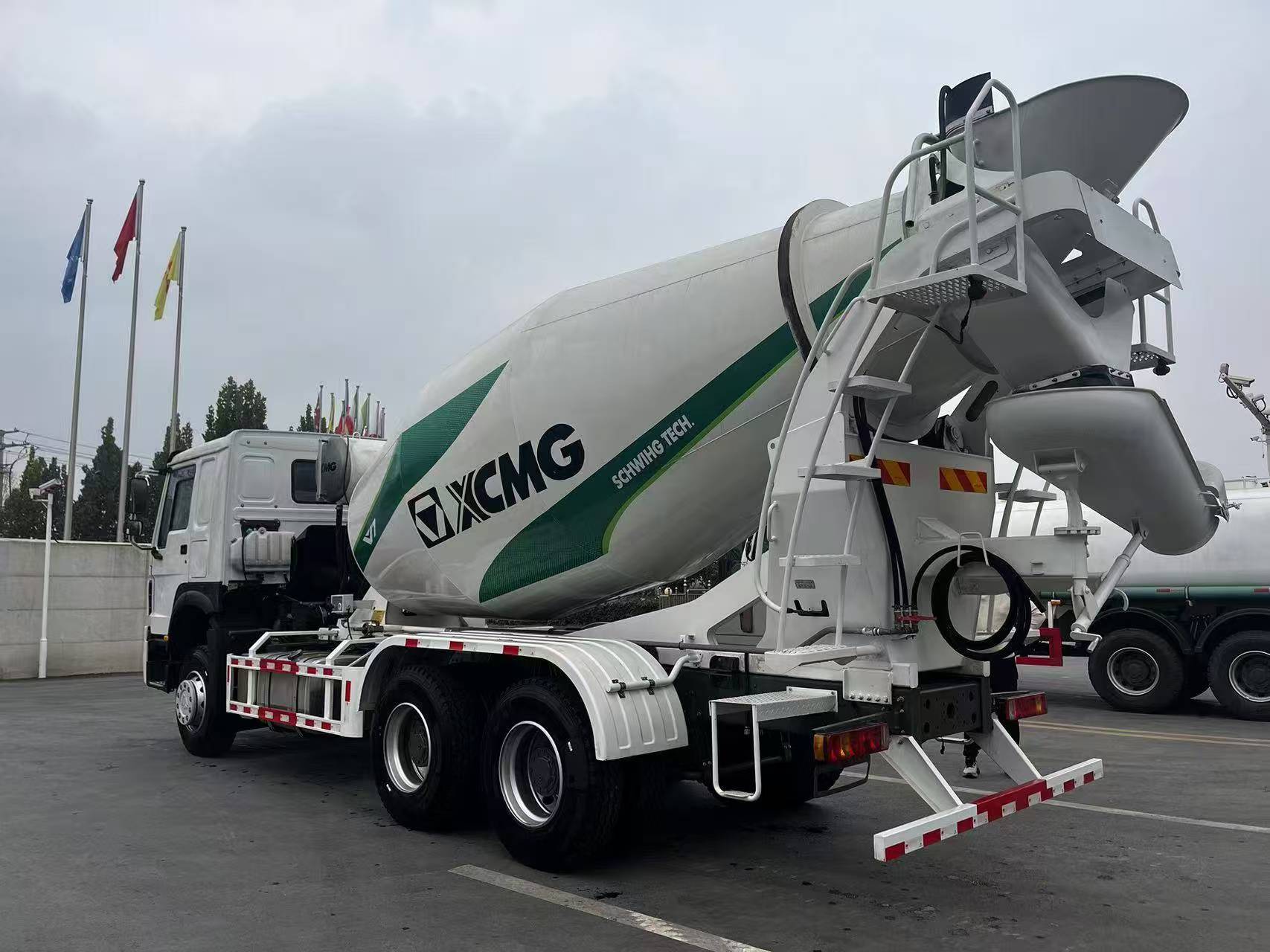

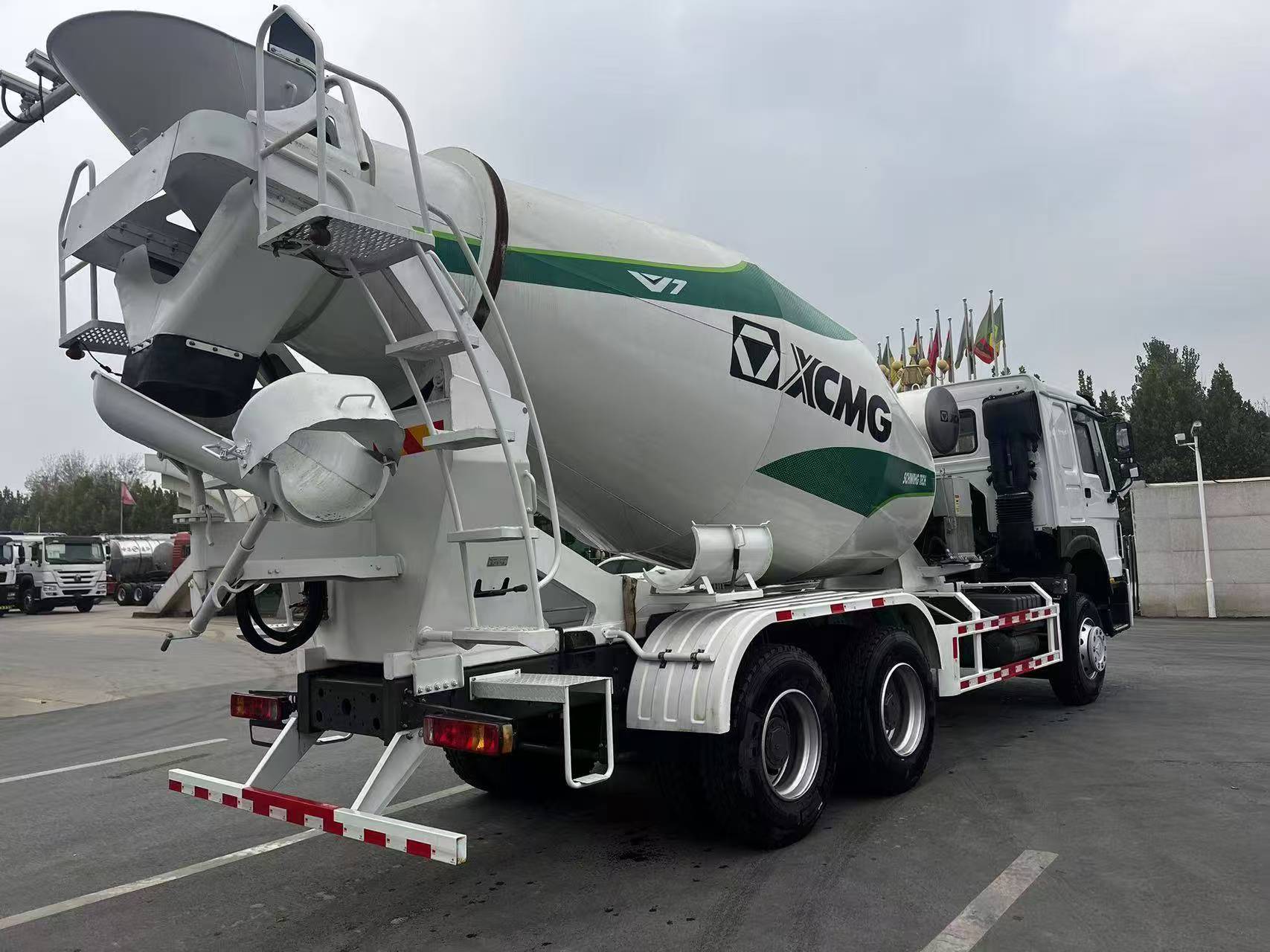

4. Mixing tank: Standard configuration includes commonly used 9-10m 3, wear-resistant Q345 steel plate, cylinder body 5mm, end cover 6mm; spiral blade design, feeding ≥ 3m 3/min, uniform rotation during transportation to prevent segregation, clean discharge with minimal residue.

5. Body and handling: HW76 single bedroom cab, hydraulic power steering, dual circuit air brake+spring parking brake; Equipped with air conditioning, adjustable steering wheel, and shock-absorbing seats; Commonly used 12.00R20 heavy-duty tires.

Key dimensions and performance

Typical vehicle dimensions: 9250 × 2500 × 3800mm (10m 3 version); Approximately 14 tons of equipment, with a rated load capacity that is compliant and adaptable.The maximum speed is about 90km/h; The fuel consumption is approximately 30L/100km depending on the operating conditions; 400L diesel fuel tank, sufficient for round-trip transportation to and from the construction site.The mixing tank can rotate forward and backward, with three modes of feeding/mixing/unloading, and the operation is stable.

Applicable scenarios and advantages

1. Scenario: Short distance transportation of concrete for urban infrastructure, bridges and roads, real estate construction sites, etc., especially suitable for areas with non strict National IV/V emissions and on-site transportation.

2. Advantages: Strong power, durable steel plate bridge, manual transmission+differential lock suitable for mud/steep slopes; Strong universality of accessories and multiple maintenance outlets; High mixing efficiency and good uniformity of concrete.
