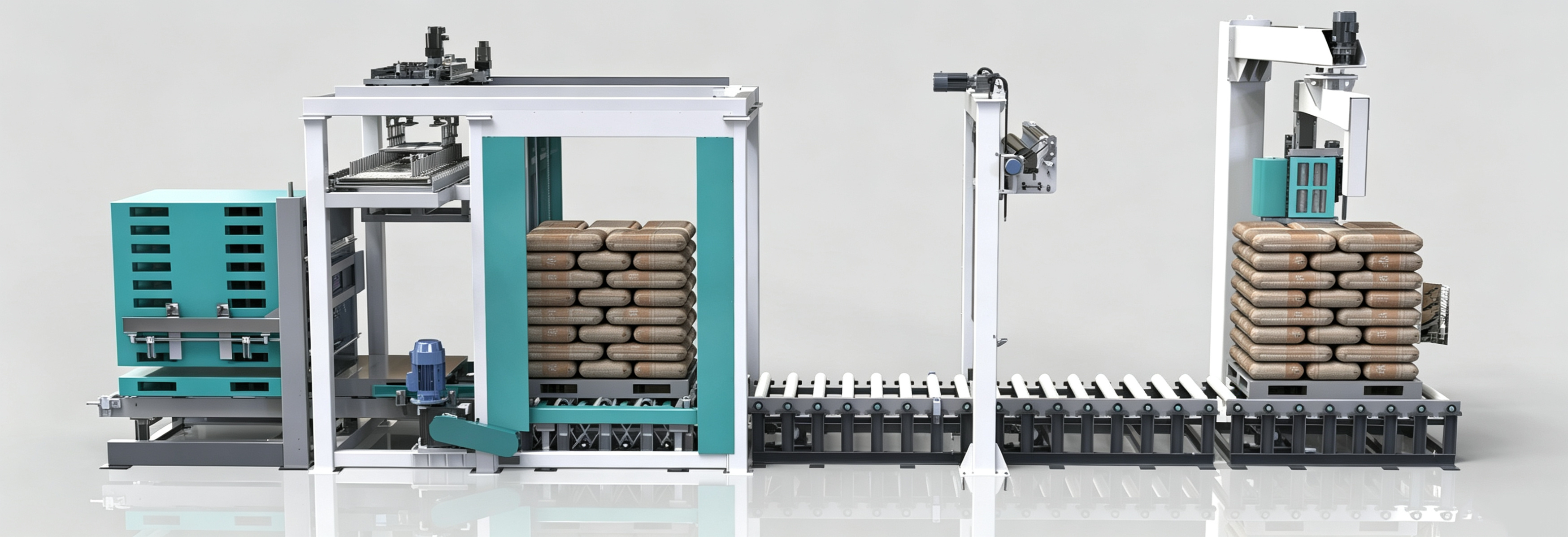

The high-level palletizer is an efficient, intelligent automatic stacking device tailored for bagged material packaging and vehicle loading operations. It comprises an automatic pallet magazine, bag waiting station, bag gripping mechanism, pallet lifting unit and automatic conveying line. This equipment greatly improves warehousing efficiency and cuts labor expenses.
The stretch wrapper serves as core end-of-line packaging machinery, which automatically and swiftly wraps stacked goods. Equipped with a high-strength film rack and adjustable film guiding system, it delivers steady and smooth film wrapping. Tight wrapping binds goods into an integrated whole, offering dustproof, moisture-proof and anti-toppling protection while optimizing appearance. It effectively secures cargo stability throughout storage and transit.When combined into a continuous production line, the two devices realize fully automated processing from finished product output to pallet stacking. They have become essential packaging facilities for modern smart manufacturing plants.
Stacking Pattern :
3 bags horizontally x 2 bags vertically per layer
Applicable Products & Pallet Specifications :
Applicable Product Types: Valve bags, open-mouth bags, FFS bags, cartons, etc.
Pallet Materials: Wooden pallets, engineering plastic pallets, iron pallets, corrugated paper pallets
Forklift Entry: Two-way or four-way entry
Pallet Dimensions: Length (1000–1400 mm) × Width (800–1200 mm) × Height (80–200 mm)
Palletizer Specifications :
Palletizing speed: 1200–2400 bags/h
Applicable bag types: 40–50 kg bags
Maximum stacking height: ≤ 2.2 m
Gripping method: Single-layer gripping
Cantilever Type Wrapping Machine Specifications :
Maximum wrapping height: 1800–2400 mm
Maximum load capacity: 2–4 t
Wrapping speed: 0–12 rpm
Lifting speed: 0–30 m/min
